Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine

    Buy cheap Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine from wholesalers

    Buy cheap Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine from wholesalers
    • Buy cheap Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine from wholesalers
    • Buy cheap Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine from wholesalers

    Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine

    Ask Lasest Price
    Price : USD 55,000 set
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram
    Supply Ability : 200000 pcs per month
    Delivery Time : 80 working days
    Brand Name : jiangsu sunyi machinery
    Model Number : four lanes nespresso filling sealing machine
    Certification : ISO 9001, CE, SGS
    • Product Details
    • Company Profile

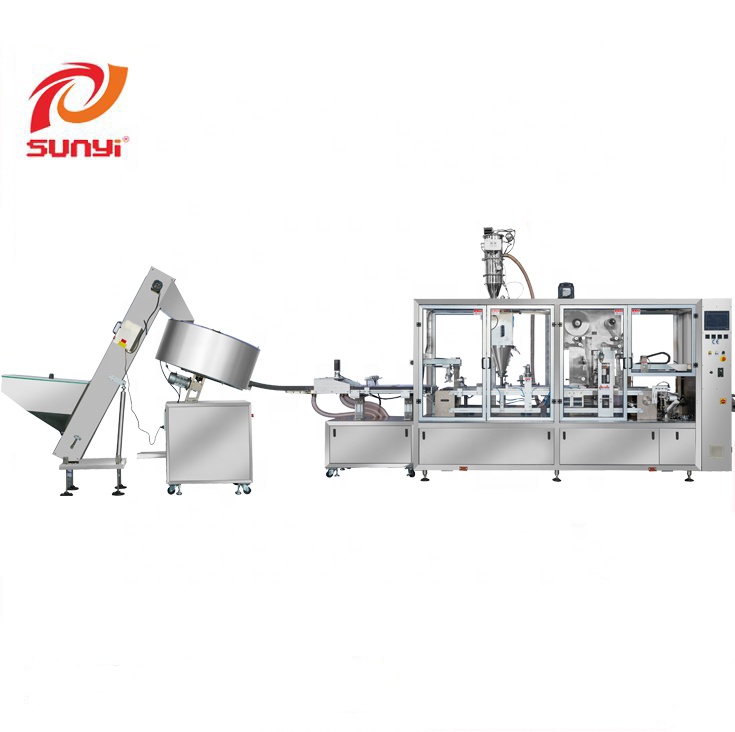

    Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine

    Product Description

    Sunyi Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine is fully automatic and muti-function coffee machine,which is higher-speed and lower-noise than ordinary coffee capsule fillin g machine.In China,we have 9-year history in the field since 2011.We Ceaselessly,we create more and more new production by lots of effort on research.Gradually,we form Sunyi brand of ourselves.The maximum spe ed of four lanes capsule filling machine can reach 160 capsules per minute.It is worth mentioning that the machine is operated through a user-friendly touchscreen(HMI),where all the machine parameters can be ac cessible during machine is runing.


    We welcome customers to order more than one set at a time.The price in stock is quite cheaper than ordinary machine to a great extent.

    Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine
    Main Function
    *Easy clean hopper system,change material type in a short time.
    *Running brush and vacuum collect dust machine clean machine's mold,ensure machines' stable running at Non-dust condition.
    *All production process with visualization on the touchscreen,continuously monitoring all relevant parameters.
    *Special design diagonal roll film unwind system,will have 15%-30% less material consumption compared with conventional methods.
    *camera sensor to check lids sealing,if is not good,it will be rejected.

    Applicable range

    The machine is used to make nespresso coffee capsule,it can fill coffee powder,milk powder,tea,instant powder and other food materials.
    Technical Parameters
    Filling weight range:
    0-20g
    Filling accuracy:
    0.1-0.3g
    Max speed:
    160Cup per minute
    Hopper capacity:
    10-24L
    Control system:
    OMRON SCHNEIDER ROCKWELL
    Displayer:
    10 Inch touchscreen
    Power supply:
    220V/380V
    Dimension:
    4880mm*1000mm*2100mm
    Certifications
    Fully Automatic Four Lanes Nespresso Coffee Capsule Filling Machine
    Machine details
    Capsule Loading
    Putting unprocessed capsule cup in the four lanes manually.The capsules cup will be trans -fered automatically to the next part when the machine is started.
    Capsule Conveyor Belt
    Manipulator will grasp the production and put them on the conveyor belt.When capsule is tra -nsfered to the part.The whole manufactur ing process will end.
    Capsule Film Sensor
    When the capsules is transfered here,the caps ule film sensor is used to judge whether the fil -m exists or not.If yes,it will go on to next part, which is important part before sealing.
    Rotary barrel
    Rotary barrel is used to put cups in order auto matically.The function part is not neces sary for customers,which is chosen by customers according to different needs.
    Our Service
    Perfect Technical support and service system
    We have a professional technical consulting,training and after-sales service team,12 months product warranty periiod,as well as within 24 hours rapid after-sales service system.
    Packing & Delivery

    Wooden Case Related

    *clean machine and Vegetable oil protect machine not rust

    *Stretch film packaging

    *Wooden tray

    *wodden case
