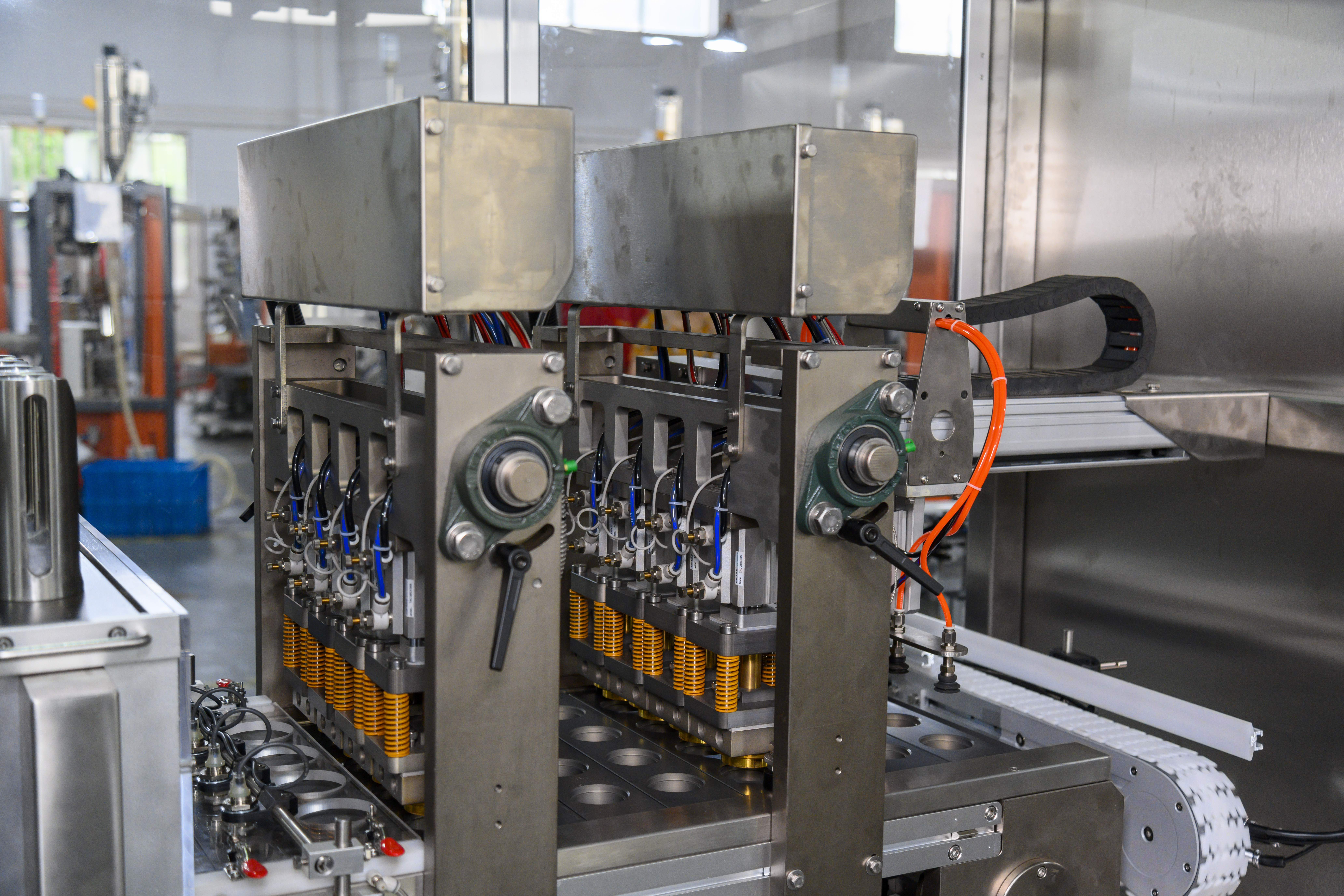

SKP-4 Four Lanes Linear Shape High Speed Kcup Coffee Capsule Filling Sealing Machine

Introduction of the four lanes kcup capsule filling and sealing machine

The machine is used to make kcup capsules filling and sealing procedures, it can be filled with coffee powder, milk powder, tea and other materials. It applies an industrial automation, completing the required processes of product packaging automatically. So it has higher production efficiency. The whole frame of the machine adopts 304 stainless steel.

It has four lanes, so it produces about 9,000 to 12,000 capsules in an hour. If you have higher quantity demand, we also have six lanes, eight lanes or you can do customized design.

Characters of the four lanes kcup capsule filling and sealing machine

Transport Module

1. basic dimensions of adaptable lengths

2. container transport by slats on a maintenance-free, backlash-free timing belt

3. central servo motor drive

4. free choice in positioning of functions

5. machine end with various exit options

6. option for integration of a gas-tight area for filling under inert gas

Container-Destacking Module

1. versions with knife, sliding plates or screw destacker

2. manual or fully automatic load from cartoning box

Punching / Sealing / Welding Module

1. free-standing, self-sufficient module with closed force flow

2. punching and sealing in single step

3. heat sealing or ultrasonic welding from roll stock or magazine

4. integrated container and tool lift

5. lift and swivel tool machanism for easy accessibility

6. separatedly mounted and controlled tools

7. individual temperature control of each tool

Filling Module

1. free-standing, self-sufficient module

2. nitrogen flushing system to keep the remained oxygen less than 1%

3. individual servo motor control

Weighing Module

1. free-standing, self-sufficient module

2. reject the unqualified ones due to the weighing check

Controls

1. standard system from Siemens, Rockwell, Schneider, Omron and so on

2. other manufactures on request

Procedures of the four lanes kcup capsule filling and sealing machine

capsules horizontal loading with a detection to confirm whether the capsules are in or not

UV lamp to kill the bacteria in the environment

servo motor controlled auger filling, customized filling weight

precut lids

two procedures of heat sealing to make sure that every capsules can be well sealed

robot arms to carry out the finished products automatically

rejection station, you can set the weight range of the capsules you want, and when the capsules reach this station, it will detect if the capsules are qualified, if not, it will blow them up.

Specifications of the four lanes kcup capsule filling and sealing machine

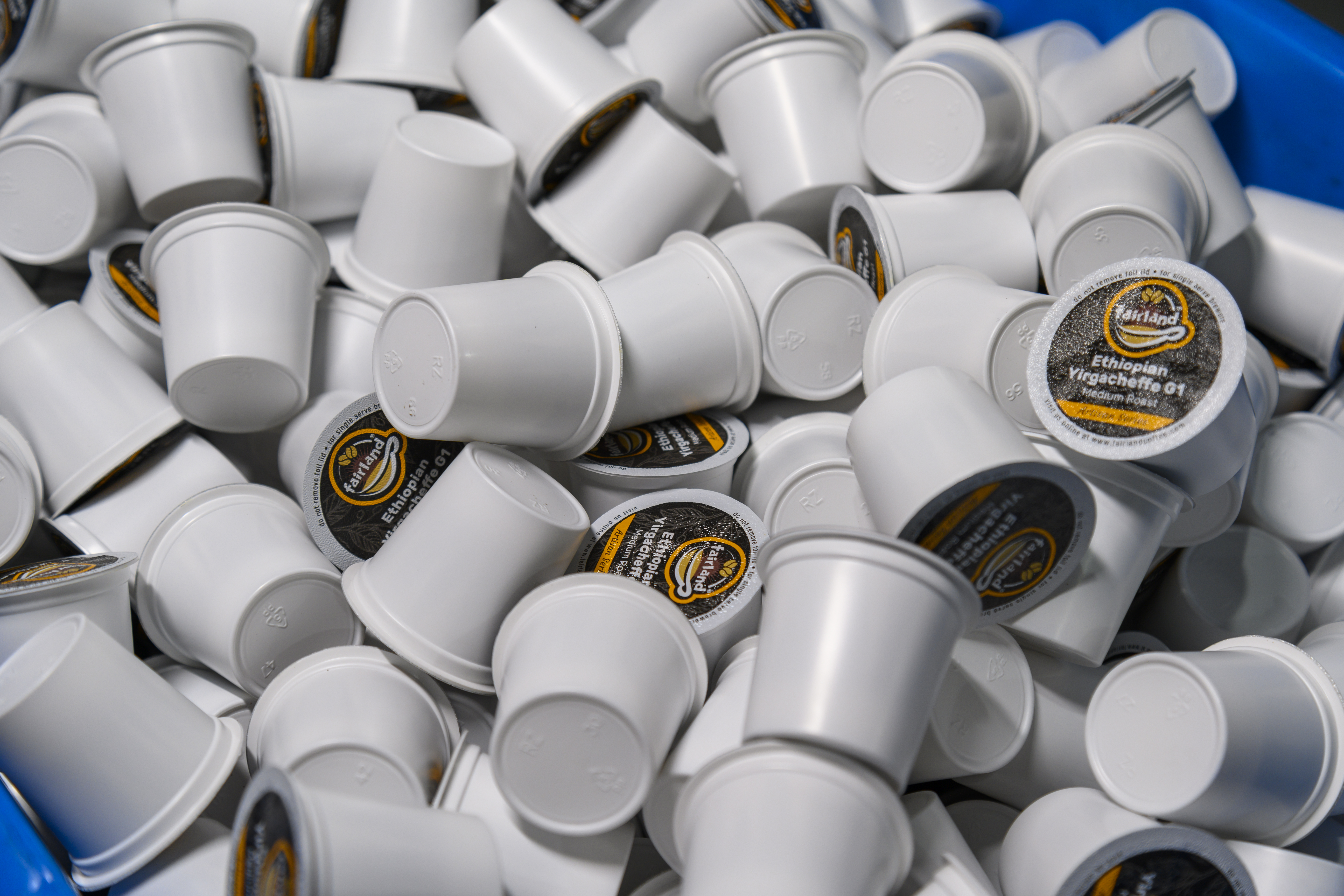

Capsules of the four lanes kcup capsule filling and sealing machine

It can be filled with 10-11g coffee powder depending on the powder and also the inner filter material.

The inner filter can be divided into paper filter / synthetic filter.

The diameter is 51mm.
