2021 New Type Single Lane Kcup Liquid Material Filling Sealing Machine

Introduction of the liquid material kcup filling sealing machine

The liquid materials kcup filling sealing machine is used to fill milk, juice, honey, shampoo and so on into the capsules. It can do lavazza capsules filling and sealing procedures, can be filled with coffee powder, milk powder, tea and other materials. It applies an industrial automation, completing the required processes of product packaging automatically. So it has higher production efficiency. The whole frame of the machine adopts 304 stainless steel.

The liquid materials kcup filling sealing machine has one lane, so it produces about 3,000 to 3,600 capsules in an hour. If you have higher quantity demand, we also have six lanes, eight lanes or you can do customized design.

Features of the liquid material kcup filling sealing machine

High stability: Rational designed Machine can work 24 hours continuously

High accuracy: filling accuracy is stable at ±0.15g, and very stable working.

Smart working: Sunyi’s machines incorporate a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.

Easy to Use: For extensive control of any internal parameters, the machine features an easy to use touch screen interface (HMI).

Control system: Industrial Japan PLC controller Omron. Positioning system driven by stepper motors with feedback. Touch screen (HMI) Omron. All in the language you use.​

Parameters of the liquid material kcup filling sealing machine

Procedures of the liquid material kcup filling sealing machine

capsules vertical loading

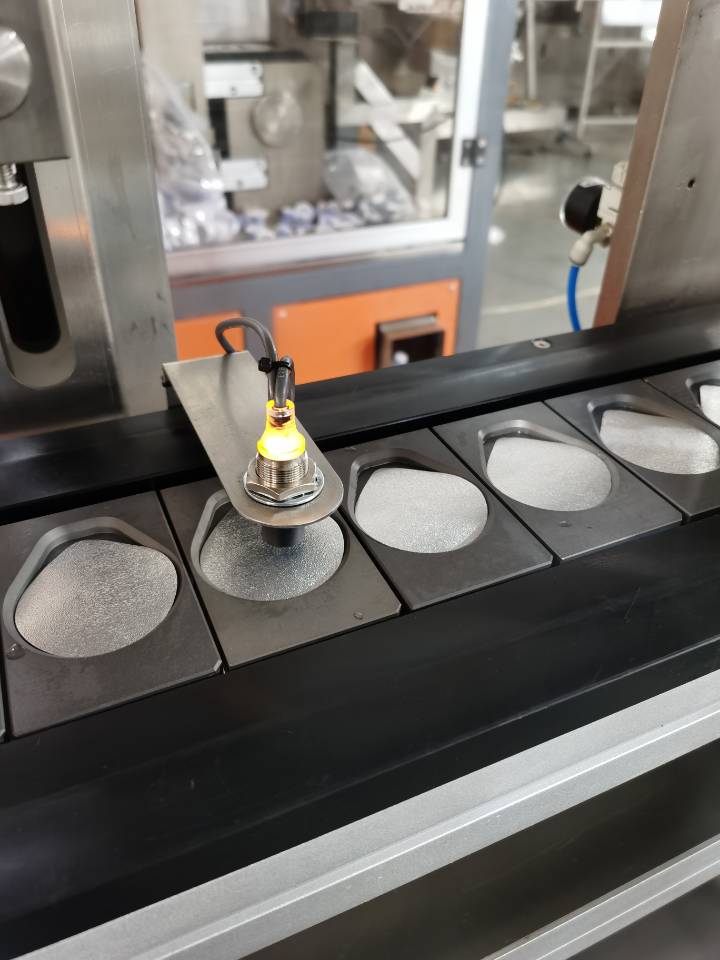

2. capsules detection.

no capsules no filling no sealing

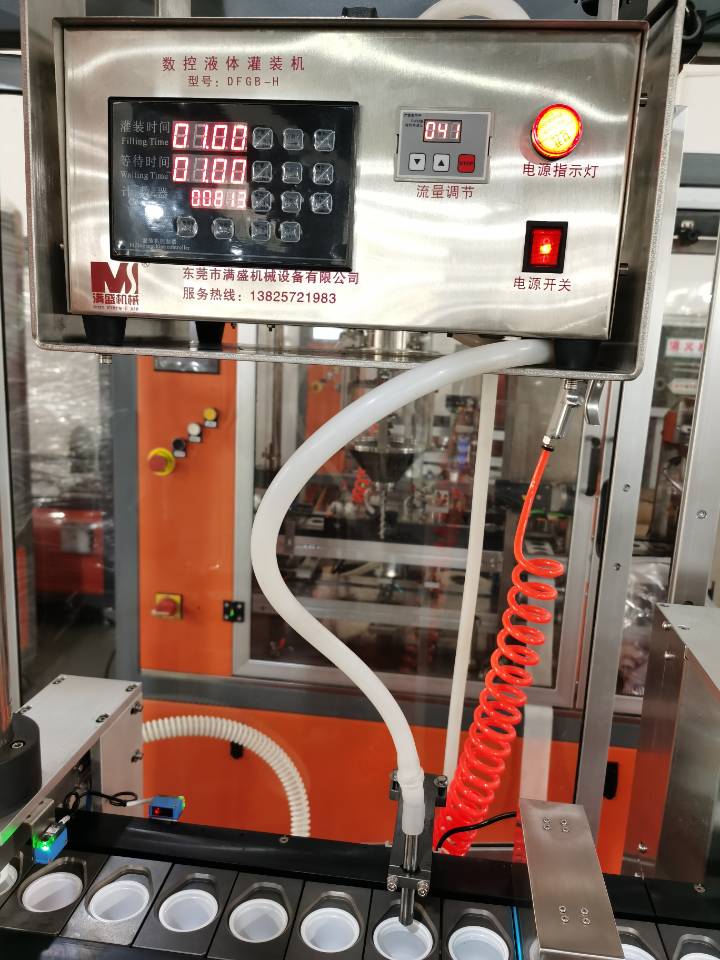

3. liquid bump filling

4. UV lamp to kill all the bacteria

5. pre-cut lids station

6. lids detection

no lids no sealing. to make sure all the capsules can be sealed well

7. heat sealing station

8. robot arms to pick the finished products automatically
