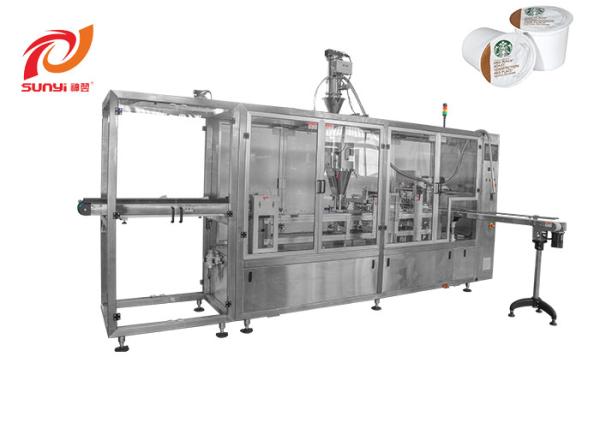

New Design Low Price Automatic Four Lanes Kcup Coffee Capsule
Filling Sealing Machine Filling Machine Coffee Capsule
Introduction of the four lanes kcup capsule filler
The four lanes kcup coffee capsule filling sealing machine is the
fully automatic one. The four lanes kcup coffee capsule filling
sealing machine has the glass doors, it is not only easy for you to
check the operation, but also keep the safety of the operators.
Once the door opened, the machine will stop working. The four lanes
kcup coffee capsule filling sealing machine has the movable hopper,
it can be convenient for you to change the filling material and
also do the cleaning. What's more, the four lanes filling sealing
machine can be filled into more than one kind of capsules, not only
the kcups, but also can be nespresso, lavazza, dolce gusto and so
on.
Characters of the four lanes kcup capsule filler
1. With concise but strong structure design.
2. The body frame colors can be on your call.
3. The electric-pneumatic components will be applied with world
famous brand, such as Schneider, Omron, SICK, AirTac, etc.
4. This machine can be suitable for compatible Nespresso, plastic
or aluminum capsules, Nespresso in compost, compostale Nespresso
capsules, K-cup, Lavazza Blue, A Modo Mio, etc...
5. With a series of multiple functions at your choice, such as: UV
lamp for capsules sterilization, Anti-static device, check weigher,
flavor adding, Nitrogen flushing, automatic vacuum powder feeding,
servo auger high accuracy filling system, remote controller, etc..
6. According to the capsules type, stackable or unstackable, the
capsules can be feeder by a vertical feeding method or automatic
capsules sorting machine.
7. For further more information, welcome to contact us in detail.
Procedures of the four lanes kcup capsule filler
capsules horizontal loading with a detection to confirm whether the
capsules are in or not
UV lamp to kill the bacteria in the environment
servo motor controlled auger filling, customized filling weight
precut lids
two procedures of heat sealing to make sure that every capsules can
be well sealed
robot arms to carry out the finished products automatically
rejection station, you can set the weight range of the capsules you
want, and when the capsules reach this station, it will detect if
the capsules are qualified, if not, it will blow them up.
Specifications of the four lanes kcup capsule filler
| Filling accuracy | ±0.15g |
| Warranty | 1 year |
| After-sale services | supply training and test; give operation manual installation and
operation video; do after-sale service overseas; 24-hours online
support |
| Hopper capacity | 10-25L / 110L |
| Max speed | 12,000 capsules per hour |
| Control system | PLC |
| Port of shipping | shanghai |
| Dimension | 5850(L)x4490(W)x2200(H)mm |
| Net weight | 1200kg |
| Power supply | AC 110V 220V 380V 20KW |
| Shape | linear |
| Driven type | Electric-Pneumatic |
| Automatic grade | fully automatic |
Finished products of the four lanes kcup capsule filler
It can be filled with 10-11g coffee powder depending on the powder
and also the inner filter material.
The inner filter can be divided into paper filter / synthetic
filter.
The diameter is 51mm.
