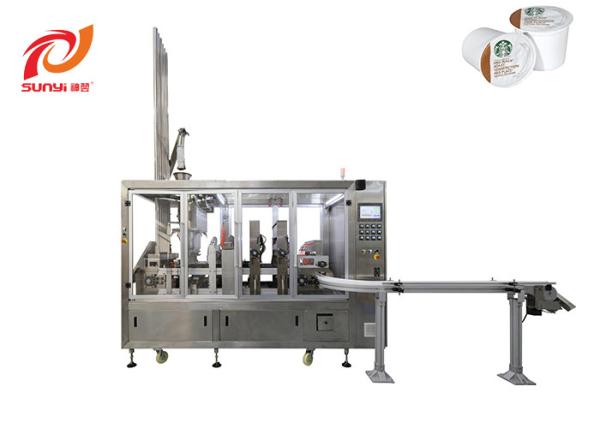

SKP-6 Six Lanes Empty Kcup Coffee Capsule Filling Sealing Machine
Introduction of the SKP-6 Six Lanes Empty Kcup Coffee Capsule Filling Sealing Machine
PLC control, frequency conversion regulates the speed steplessly.
Finish the whole process automatically, including 7 steps in total
as capsules loading, auger filling, tamping and cleaning,
perforated films sealing, plastic films sealing, heat sealing,
capsules output.
Human-machine interface, operate easily and clearly. No capsules no
filling no sealing, to ensures the safety of the operators.
All the related parts connecting with food adopts high quality of
304/316 stainless steel, in accordance with GMP standard.
Main pneumatic components and electric appliances are imported of
famour brands.
Parameters of the SKP-6 Six Lanes Empty Kcup Coffee Capsule Filling Sealing Machine
| Product Parameters |
| SKP-1N Rotary Nespresso compatible coffee capsule filling and
sealing machine |
| All the product contact parts are food grade stainless steel AISI 304. |
| Certificate | CE, SGS , ISO 9001,FDA, CSA, UL |
| The packed object | Fresh ground coffee; instant coffee; tea products; other food
powder |
| Capacity | 2700 – 3000 pcs/hour |
| Filling system | Auger filler driven by servo motor |
| Filling accuracy | ±0.15 g |
| Filling range | 0-20 g |
| Sealing | Pre-cut lid sealing or Roll film cutting-sealing |
| Hopper capacity | 10 L |
| Power | 2,5 KW |
| Voltage | Single phase, 220 V,50/60 HZ |
| Compressed air consumption | ≥300 L/minute |
| Compressed air supply | Dry compressed air, ≥6 Bar |
| Weight | 600 Kg |
| Dimension | 3600 mmX1650mmX2885 mm |
| Delivery packaging | Wooden box |
Using procedures of the SKP-6 Six Lanes Empty Kcup Coffee Capsule Filling Sealing Machine
1. capsules automatically loading
2. capsules detecting
no capsules, no filling, no sealing
3. auger filling
you can set the filling weight by yourself
4. pre-cut films
the robort arms will seize and put the pre-cut films at the middle
of the capsules automatically
5. heat sealing
two procedures of heat sealing to make sure that every capsules be
sealed perfect
6. capsules output
the robort arms will pick out the finished capsules automatically
to the conveyor belt
